W70 Weigh System

W70 Weigh System

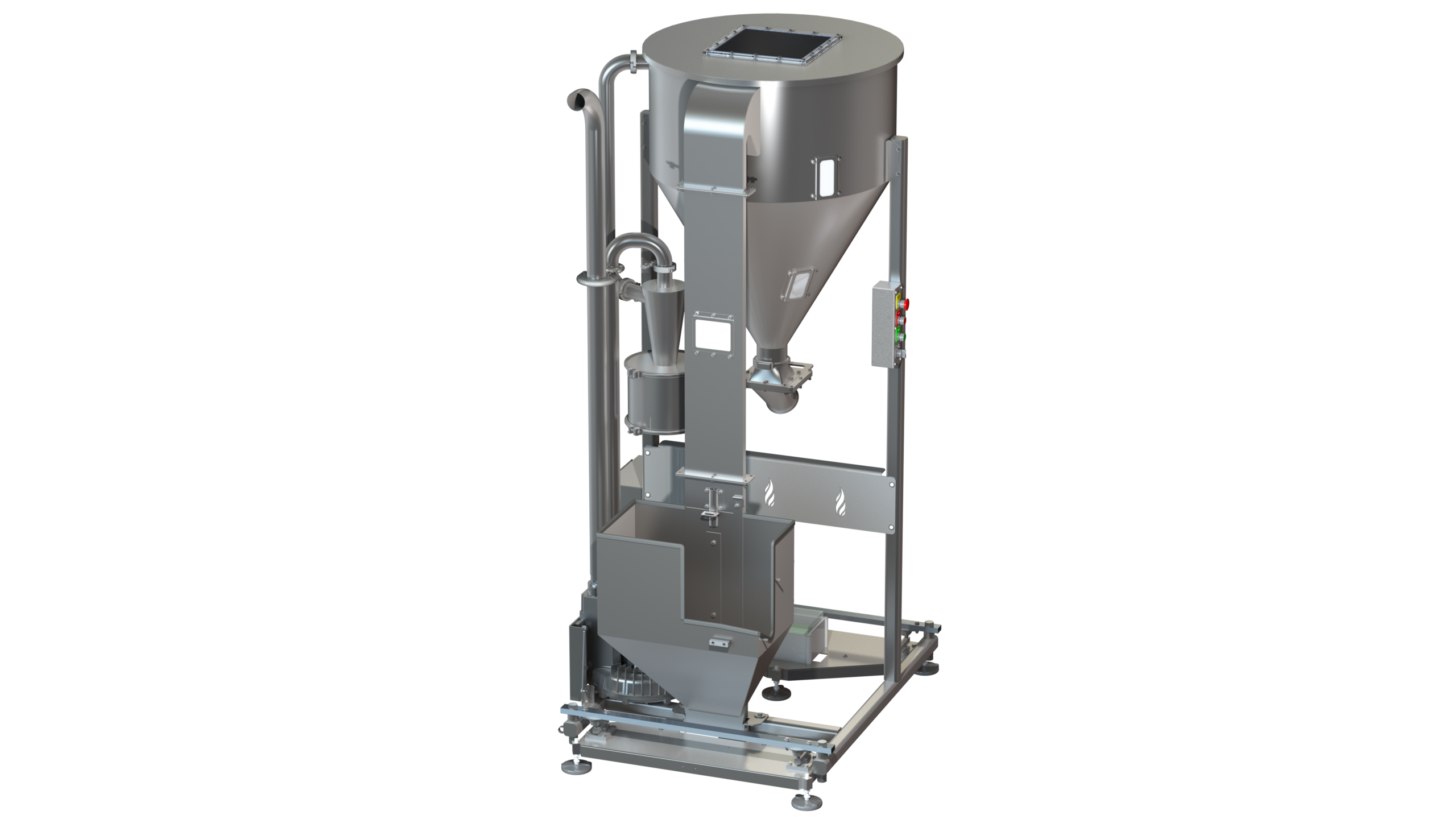

The Loring W70 Weigh System is intended for integration with an automated SCADA system that includes a Loring D70 Destoner.

  • 4x 250lb Load Cells
  • Combiner Box
  • Weight Display Screen

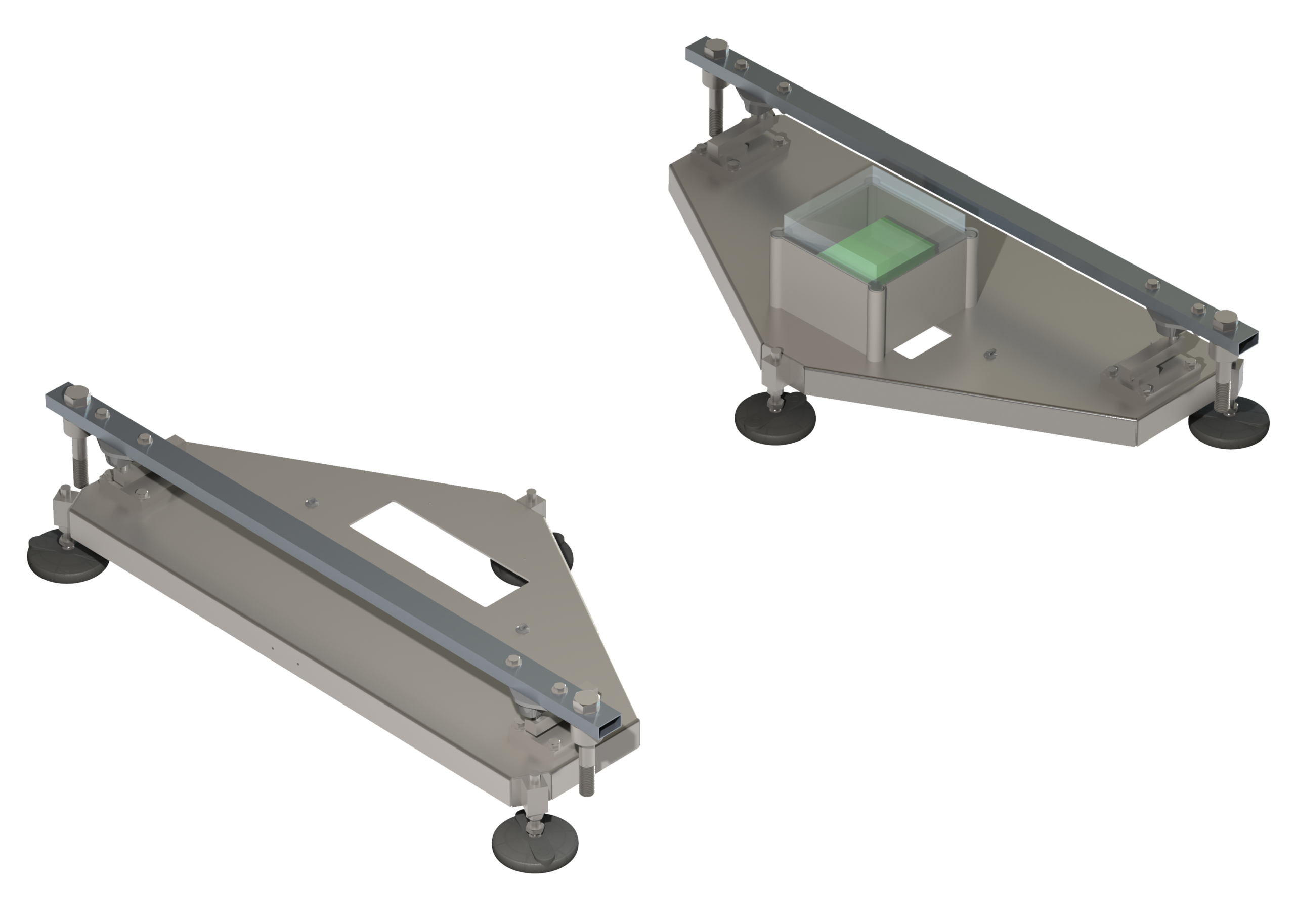

  • Mounting System
  • 14-70kg batch capacity

Request a Quote

Technical Specifications

Eliminate smoke during the roasting process without an external afterburner.

Roast Smarter

Single burner roasts beans and incinerates smoke.

High-speed cooling tray reduces cooling time while protecting beans.

Sustainability and Savings

Up to 80% fuel-savings and reduction of greenhouse gases in every roast, compared to conventional roasters.

Focus on the Roast, Automate the Rest

Automated controls for dropping green from the hopper, discharging beans from the roast chamber, and precise control over the burner.

American Made

Designed and made in California by skilled engineers and craftsmen. Stainless steel construction. ISO 9001:2015 certified.

Unparalleled Control

Touch screen and PID provide operation of burner and fan speeds. Profiles can be saved and repeated consistently. Fully automated roasting process.

Weigh System Specifications
Minimum Batch Size (Roasted Coffee) 30.8 lb (14 kg)
Maximum Batch Size (Roasted Coffee) 154 lb (70 kg)
Connection Types Ethernet/IP Port; RS485 Serial Port
Output Types Ethernet/IP Port; RS485 Serial Port; Analog
Accuracy +/- 0.5 lb (0.23 kg)
Maximum Load Cell Weight 1000 lb (453.6 kg)
Maximum Load Cell Weight (While Supporting D70 Weight) 440 lb (200 kg)
