Cooling System Cyclone

Cooling System Cyclone

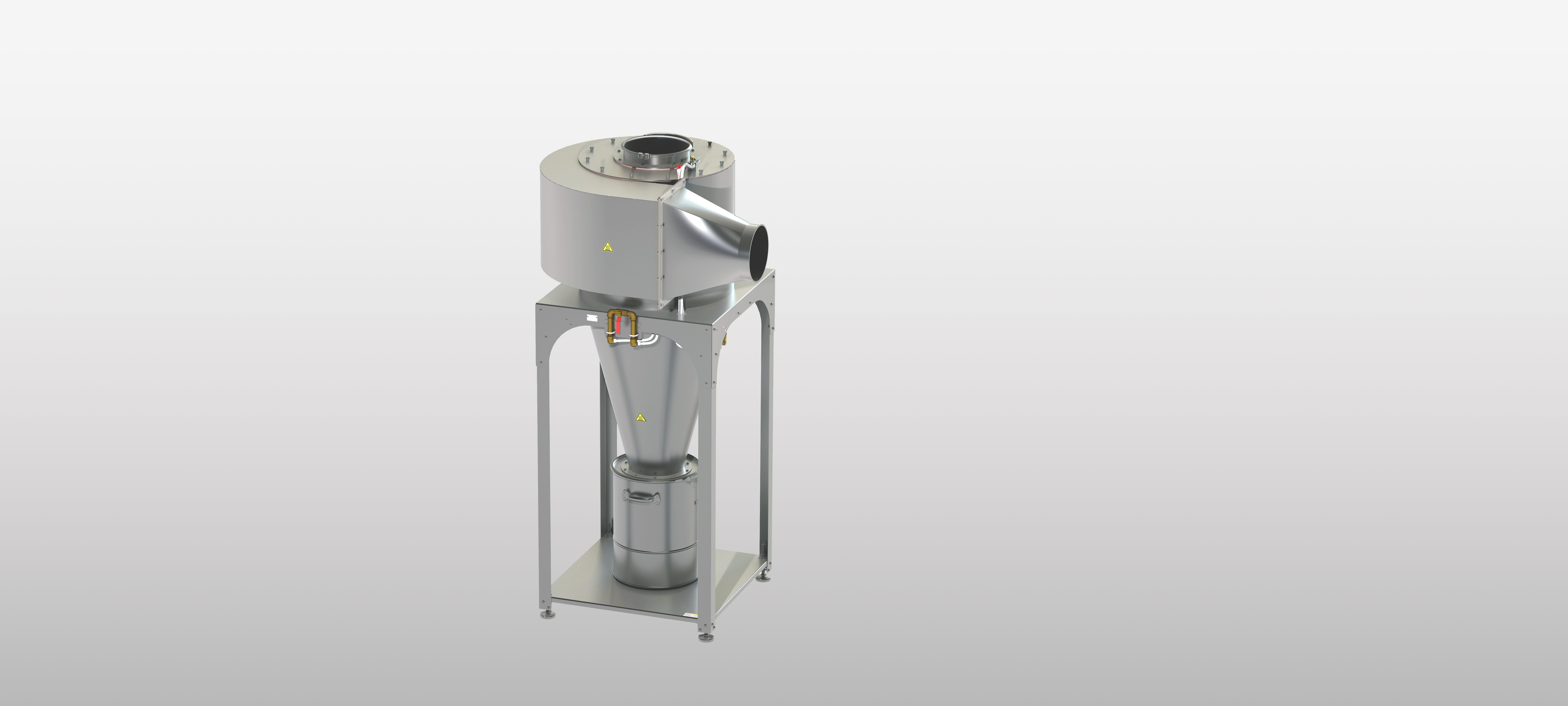

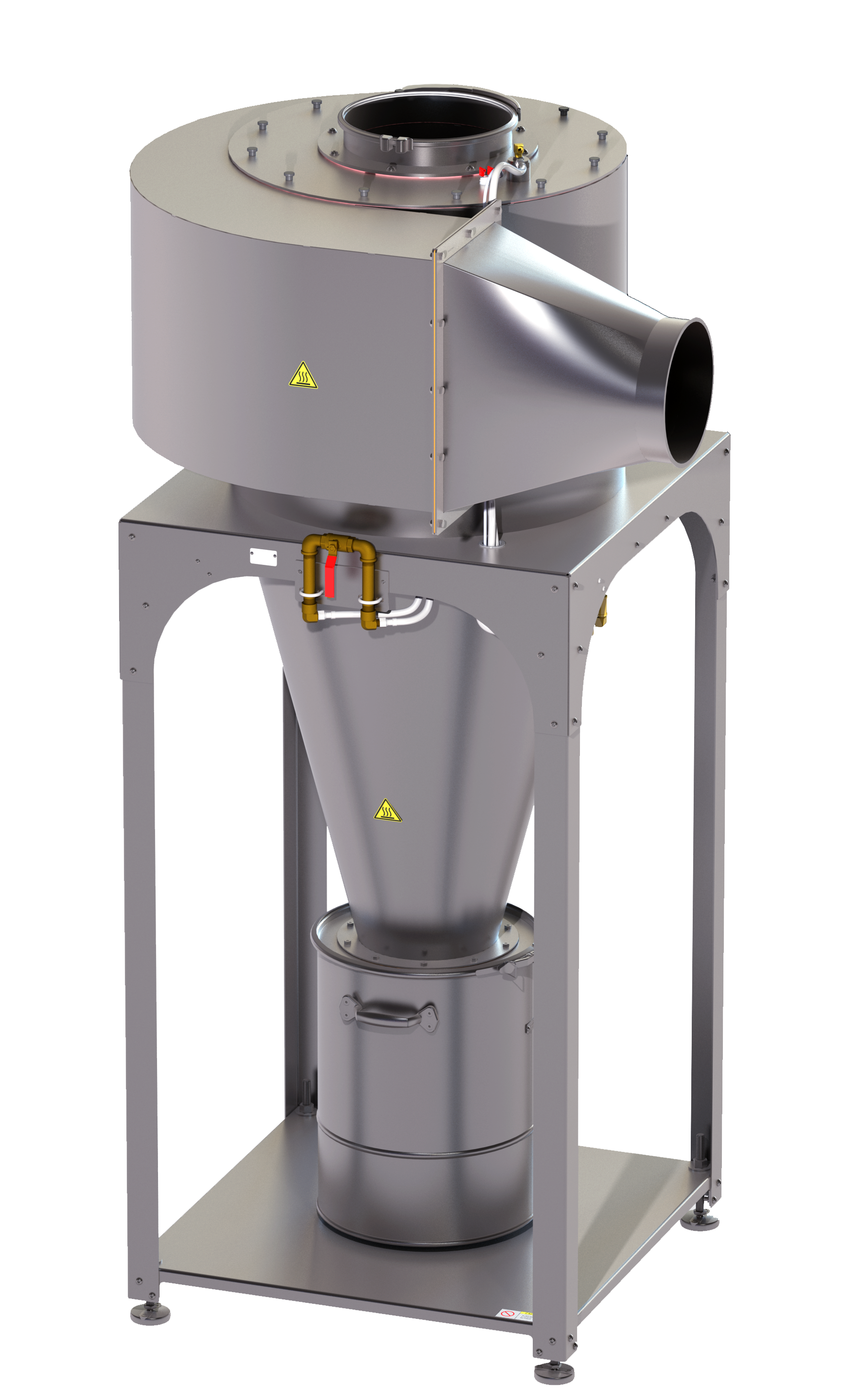

The Loring Cooling System Cyclone (CSC) provides additional bean dust & debris collection for S35 & S70 roasters.

• Automatic water quench safety valve
• Stainless steel construction
• Self-standing frame
• Minimize chaff, dust, and bean chips exiting cooler tray

Request a Quote

Technical Specifications

Eliminate smoke during the roasting process without an external afterburner.

Roast Smarter

Single burner roasts beans and incinerates smoke.

High-speed cooling tray reduces cooling time while protecting beans.

Sustainability and Savings

Up to 80% fuel-savings and reduction of greenhouse gases in every roast, compared to conventional roasters.

Focus on the Roast, Automate the Rest

Automated controls for dropping green from the hopper, discharging beans from the roast chamber, and precise control over the burner.

American Made

Designed and made in California by skilled engineers and craftsmen. Stainless steel construction. ISO 9001:2015 certified.

Unparalleled Control

Touch screen and PID provide operation of burner and fan speeds. Profiles can be saved and repeated consistently. Fully automated roasting process.

CSC Specifications
CSC Pairs with S35 Kestrel or S70 Peregrine
Weight 380 lb (172 kg)
Height 88.1 in (223.9 cm)
Width 45.6 in (115.7 cm)
Depth 42.4 in (107.8 cm)
Inlet Size 10 in (25.4 cm)
Outlet Size 12 in (30.5 cm)
Water Supply From Roaster
Electrical Supply From Roaster
